Real5T

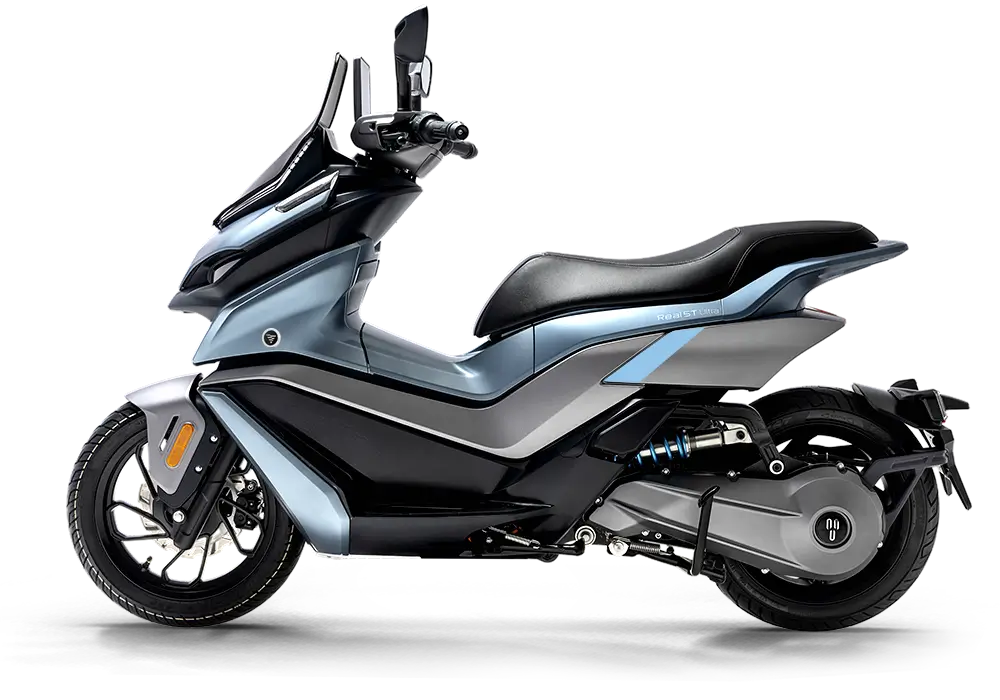

VOGE Real5T electric motorcycle, sharp joy, to yourself
Video
Features

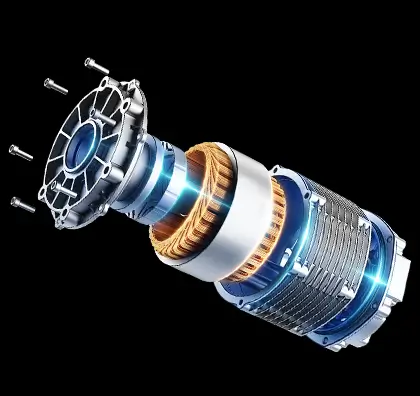

BICOSE peak, driven by Sci.-Tech
Permanent magnet synchronous motor lays at middle with high performance + V-MCU[Control unit of variable frequency and high precision], strong power lights up passion for high speed

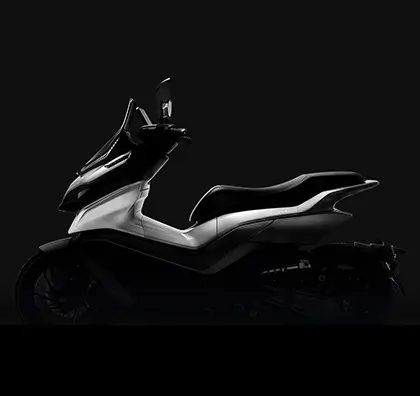

Master art for looking
Style of mastering art from innovation while suspending design full of inspiration, who creates simple sense for beauty of Sci.-Tech. even melody in future

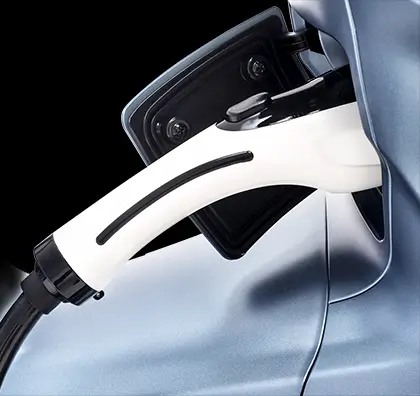

Suitable power charging easy and save time
Strong power charging motor on vehicle with 1.84kW of Real5TUltra suits charging station of automoble, who charges by 80% in 2 hours

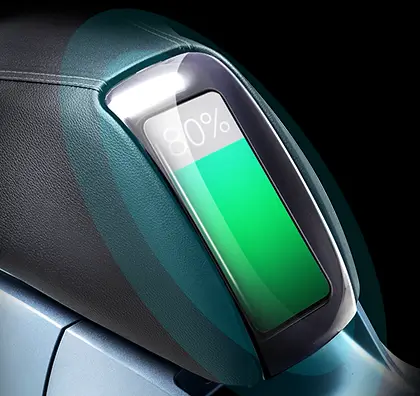

Wireless charging for mobile on vehicle, easy and safe
Wireless power charging for mobile phone of 15W, remind when you leaving by audible and visual alarm

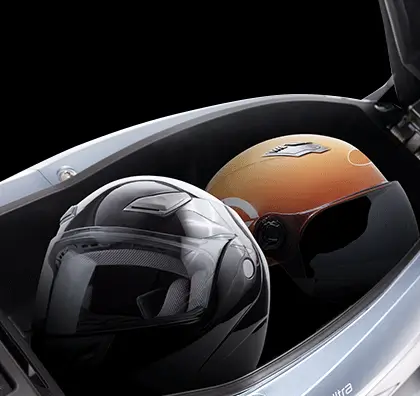

Super luggage space of 33L load at will
The space is enough for a helmet in full size and another one of 1/2

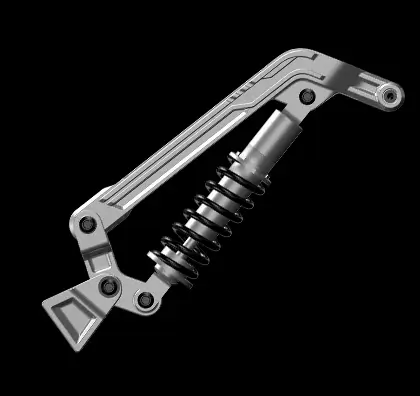

Quad-link(Single suspension by 4-link arm
Single suspending arm of aluminium alloy, creates mechanical sense for beauty, meanwhile easier for removal even maintenance for rar wheel, and gets space of sitting barrel better

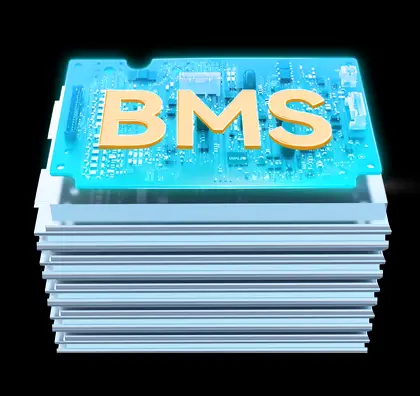

Battery management system of BMS at auto-grade
Real-time monitor and make smart management, get battery life longer and protect charging when its surrounding is cold or hot, lower limit of -20℃ while top at 65℃

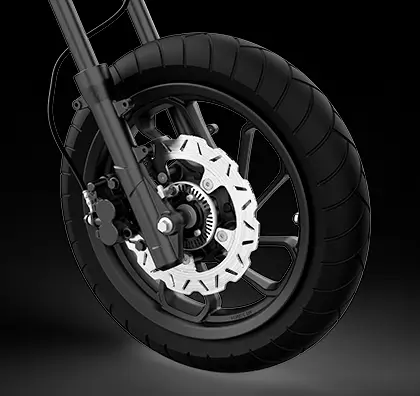

Front and rear of double passage for ABS+TCS
Effectively brake in 0.5S to prevent tire locking-up. Traction Control System(TCS) takes protection in rain/snow/wet/turning road and prevent sideslipping.
Parameter details
| Overall size (L × W × H) | 1870×770×1190mm |
| Wheel base | 1315mm |
| Seat height | 765mm |
| Ground clearance | 135mm |
| Net weight | 150Kg |
| Maximum speed | 115 Km/h |
| Front tire size | 100/80-14 |
| Rear tire size | 120/70-14 |
| Front suspension | Upright hydraulic |
| Rear suspension | Crosswise laid single rear suspension |
| Front brake | Disk |
| Rear brake | Disk |
| ABS | 2 channel ABS with TCS |
| wheel | Alloy wheel |
| Light | Full LED lights |
| Meter | 8″TFT |
| Motor type | Permanent magnet DC synchromotor /Are-cooled |
| Rated power | 6 kW |
| Motor max power | 13.5 kW |
| Motor max Torque | 50 N . m |
| Battery rated voltage | 89 V |
| Battery capacity | 27*2 Ah |
| Endurance mileage | 150km（NEDC） |
| Battery weight | 15 Kg×2 |
