EF40X
VOGE EF40X electric motorcycle, new height of playing pleasure
Video
Features

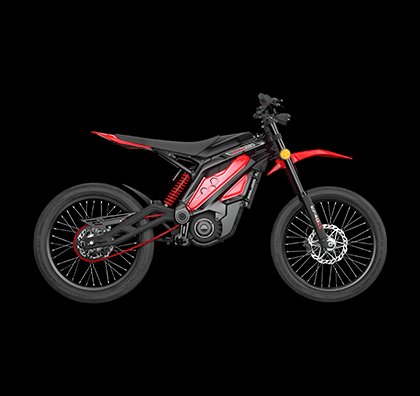

Impressive power performance
Peak torque of 404N.m, maximum speed of 80km/h, 0-50km/h acceleration in just 3 second.

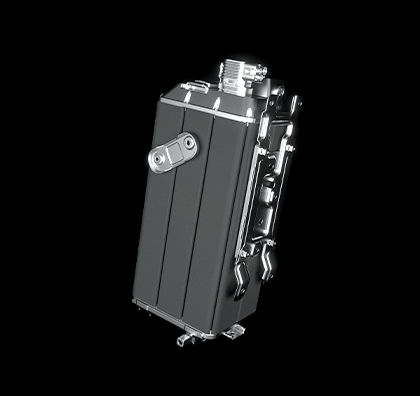

Efficient Battery for Long-lasting Endurance
Imported LG 21700 high-performance automotive-grade battery, 72V high-voltage platform, 72V35Ah supporting 8.6kW peak power.

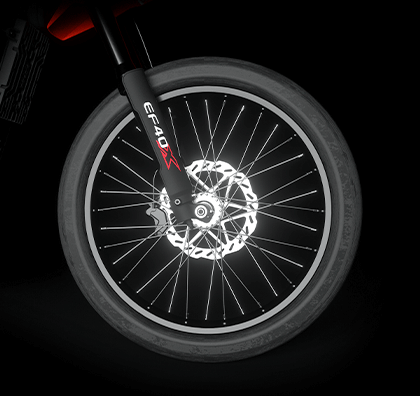

Efficient braking system
Equipped with disc brakes both at the front and rear, it provides excellent braking performance to ensure riding safety.

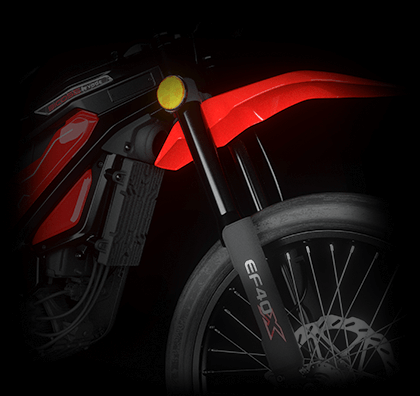

Excellent suspension system
Front inverted shock absorber and rear air-bag single shock absorber design, effectively absorbing road vibrations.

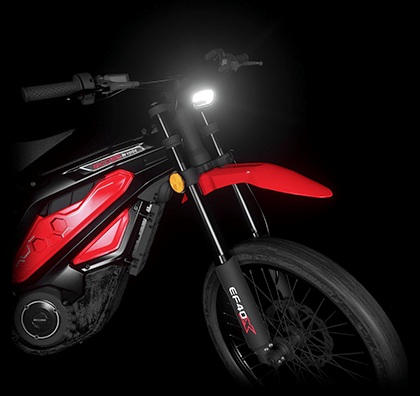

Full LED lights
Excellent lighting effect, ensuring clear vision even when riding at night.

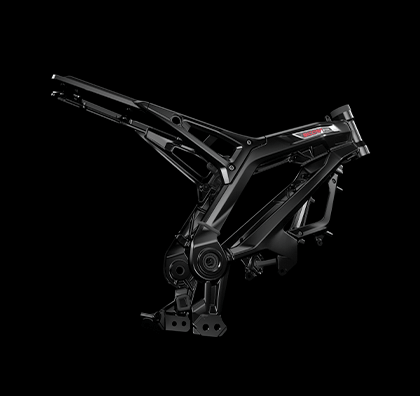

Ultimate frame lightweighting
Through CAE structural analysis, the frame achieves a 50:50 weight distribution for optimal handling, with a lightweight yet stable design weighing only 66kg.

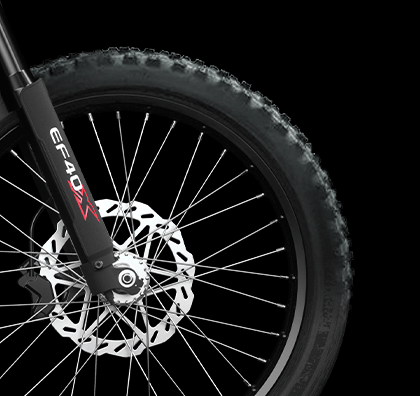

High-quality wheel design
Adopting alloy rim spoke wheels, which are both aesthetically pleasing and durable, capable of tackling complex road conditions and enhancing riding stability.

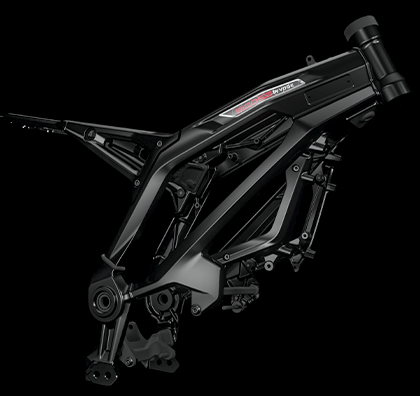

More stable aluminum alloy swing arm
Fully ensures the stability of the entire motorcycle, providing a more reassuring riding experience.
Parameter details
| Overall size (L×W×H) | 1895×770×1085mm |
| Wheel base | 1260mm |
| Seat height | 860mm |
| Ground clearance | 285mm |
| Net weight | 66kg |
| Maximum speed | 80km/h |
| Front tire size | 70/100-19 |
| Rear tire size | 80/100-19 |
| Front suspension | up-side-down |
| Rear suspension | Air bag |
| Front brake | Disc |
| Rear brake | Disc |
| ABS | / |
| wheel | Alloy rim spoke wheel |
| Light | Led head light |
| Meter | LCD 2 inch meter |
| Motor type | Permanent magnet AC synchromotor / Air-cooled |
| Rated power | 4kW |
| Motor max power | 7.5kW |
| Motor max Torque | 44.5N·m |
| Battery rated voltage | 72V |
| Battery capacity | 35Ah |
| Maximum mileage | 80km |
| Battery weight | 13.5kg |
